      Ultrasound Setup - Chison Sonobook 9

      DICOM Setup for Chison Sonobook 9 (Minray)

      NETWORK RESTRICTIONS:

      - Ensure Ultrasound system is connected to an Ethernet Cable



      1) Click the 2nd left button on the bottom of the Keyboard, "Utility"

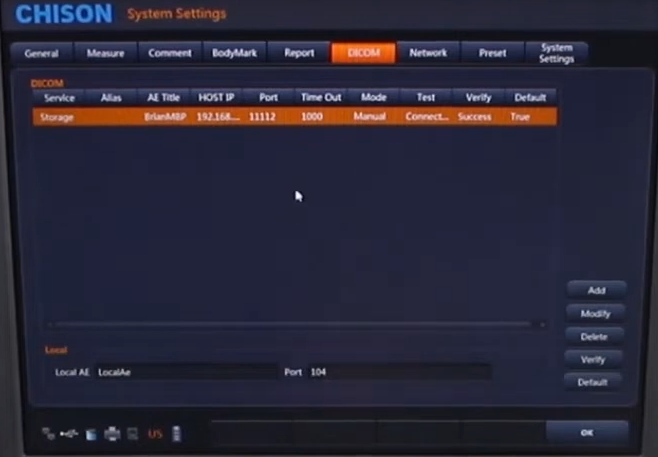

      2) Under "System Settings" click on "DICOM"

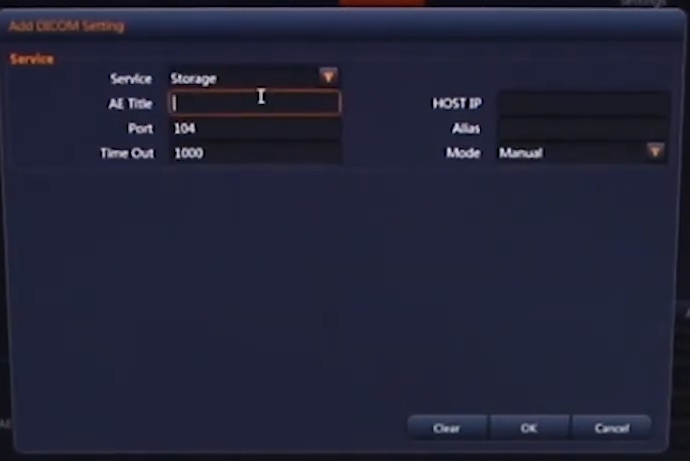

      3) Click on "Add"

      - Ensure Service is set to "Storage"

      - Enter the AETITLE, HOST IP, Port and Alias which is "SignalPET"

      - Change mode to "Batch"

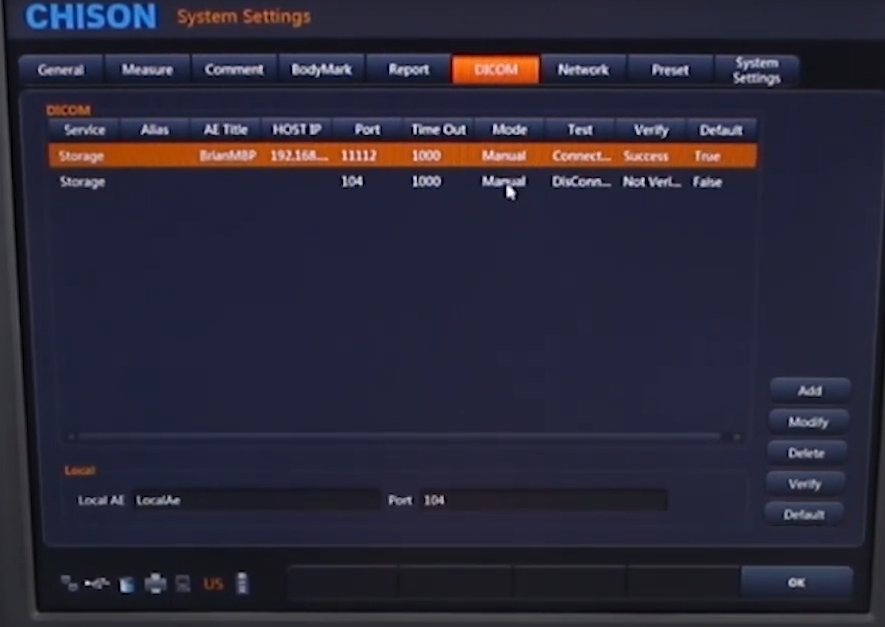

      4) Click on "Verify" in the bottom right.



      Nothing else needs to be configured.
