SoundSmart DR

SoundSmart DR SignalPET Integration

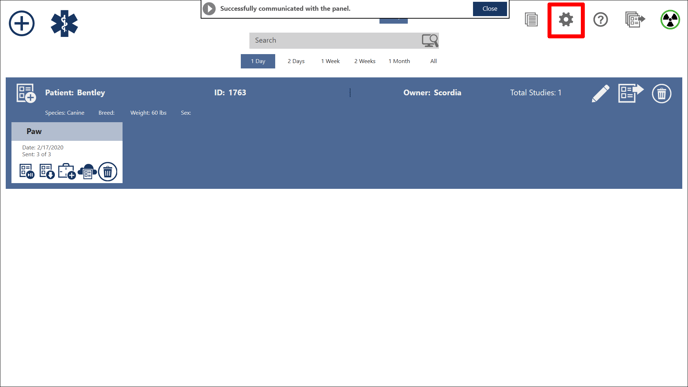

1. From the main screen, click the Settings icon:

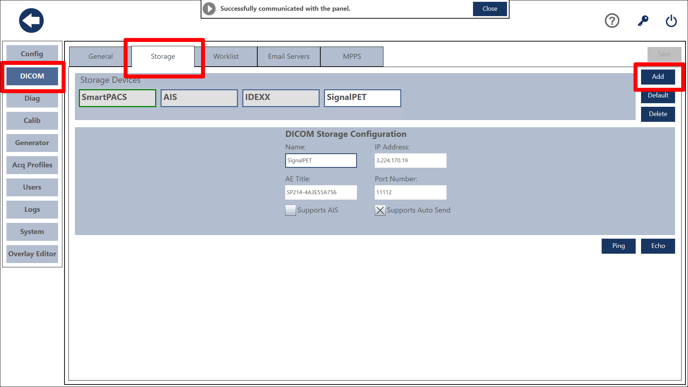

2. Select the “DICOM” left menu item, then the “Storage” tab. Click “Add” to create a new storage destination.

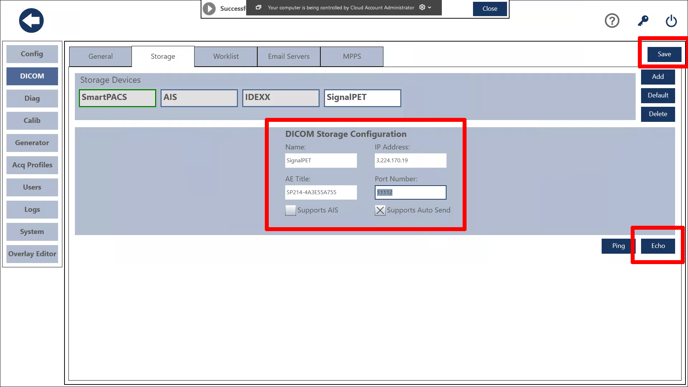

3. Enter the SignalPET destination settings. Click “Echo” to verify the connection, then “Save” to save the settings.

4. Return to the Studies screen; select the most recently completed Study and click the “Send” icon.

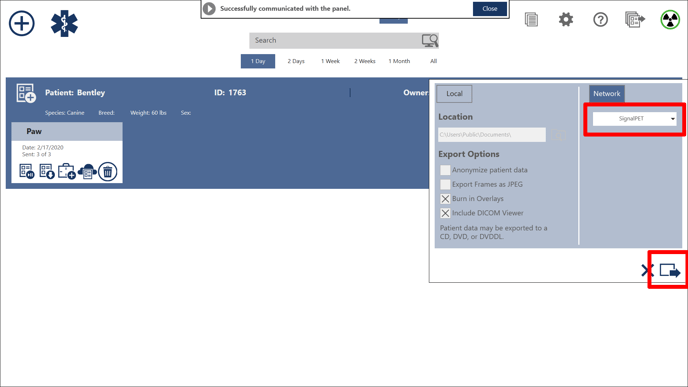

5. In the dialog that appears, select “SignalPET” from the dropdown under “Network” and click the “Send” icon.

6. Allow the IP in the Company’s Agent page and confirm the study appears correctly.
