MindRAY machine set

MindRAY dicom set up

Credentials:



Username - admin

Password - admin



1. Open the program and select the hexagon icon on the bottom right corner next to the data. Then click on the dicom configuration icon.

2. Under dicom configuration, click on the storage and add SignalPET's dicom information, set SignalPET as the default and save.

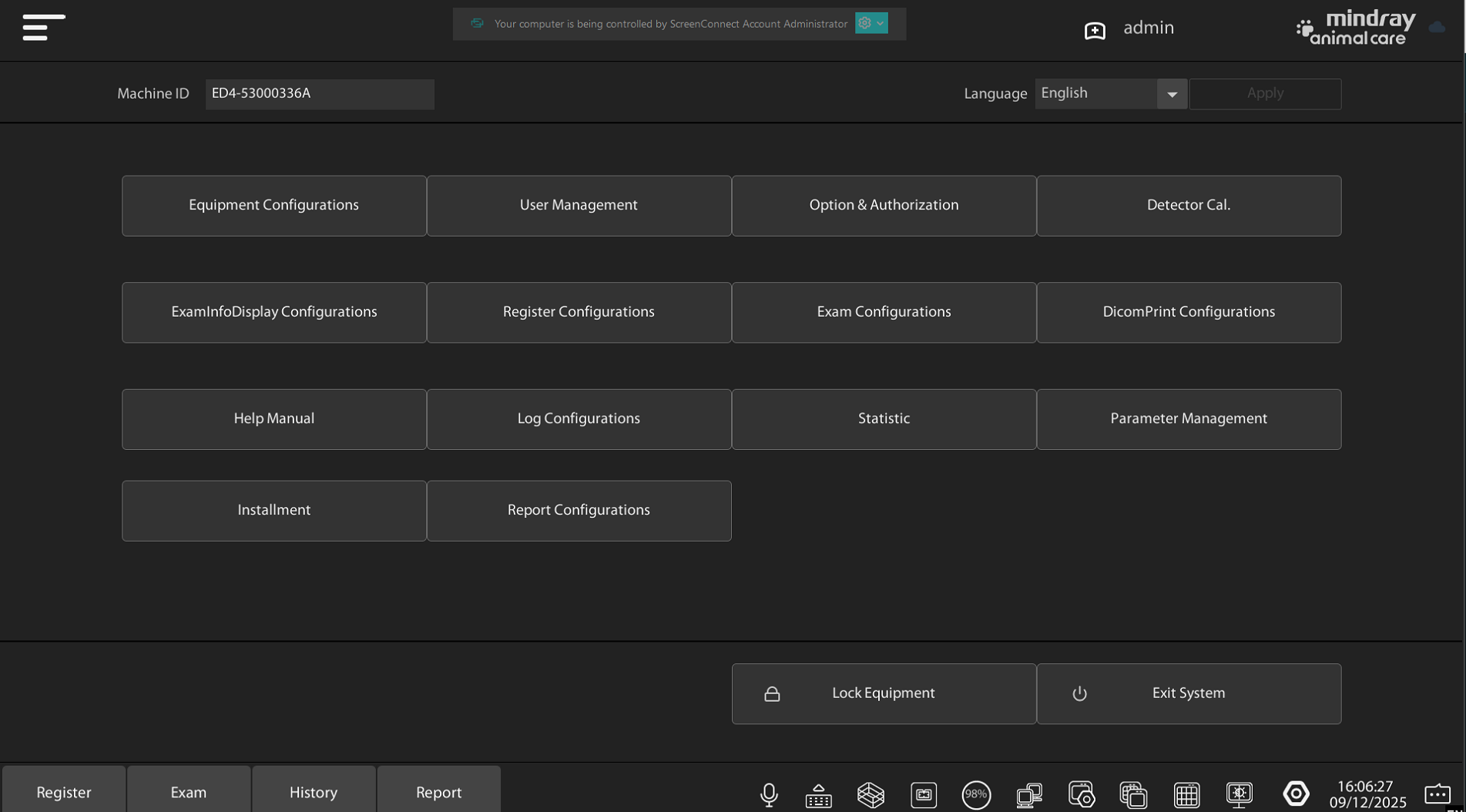

3. Go to the system settings by clicking on the top left corner icon then select equipment configuration.

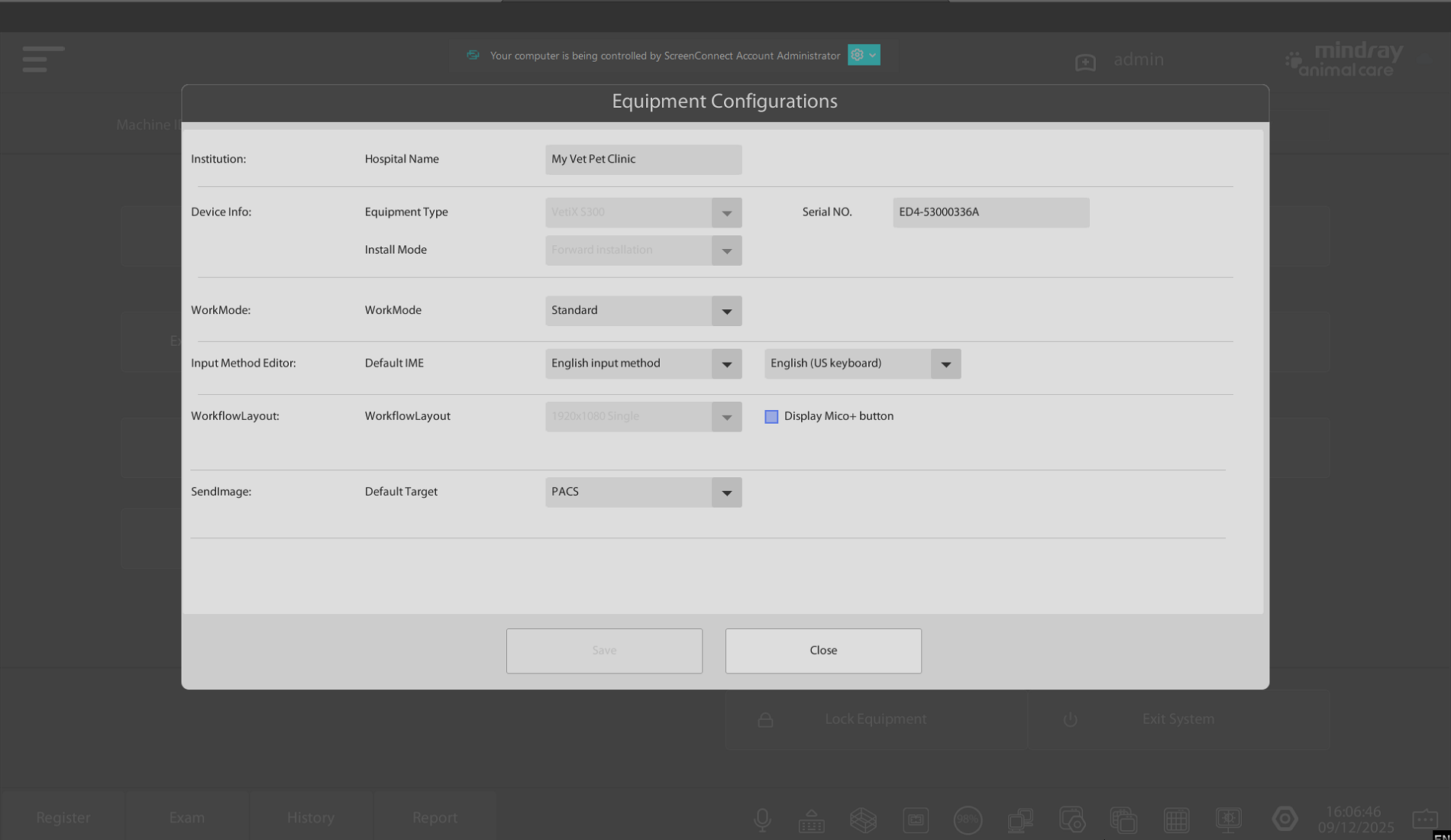

4. Under equipment configuration change default target to PACs.

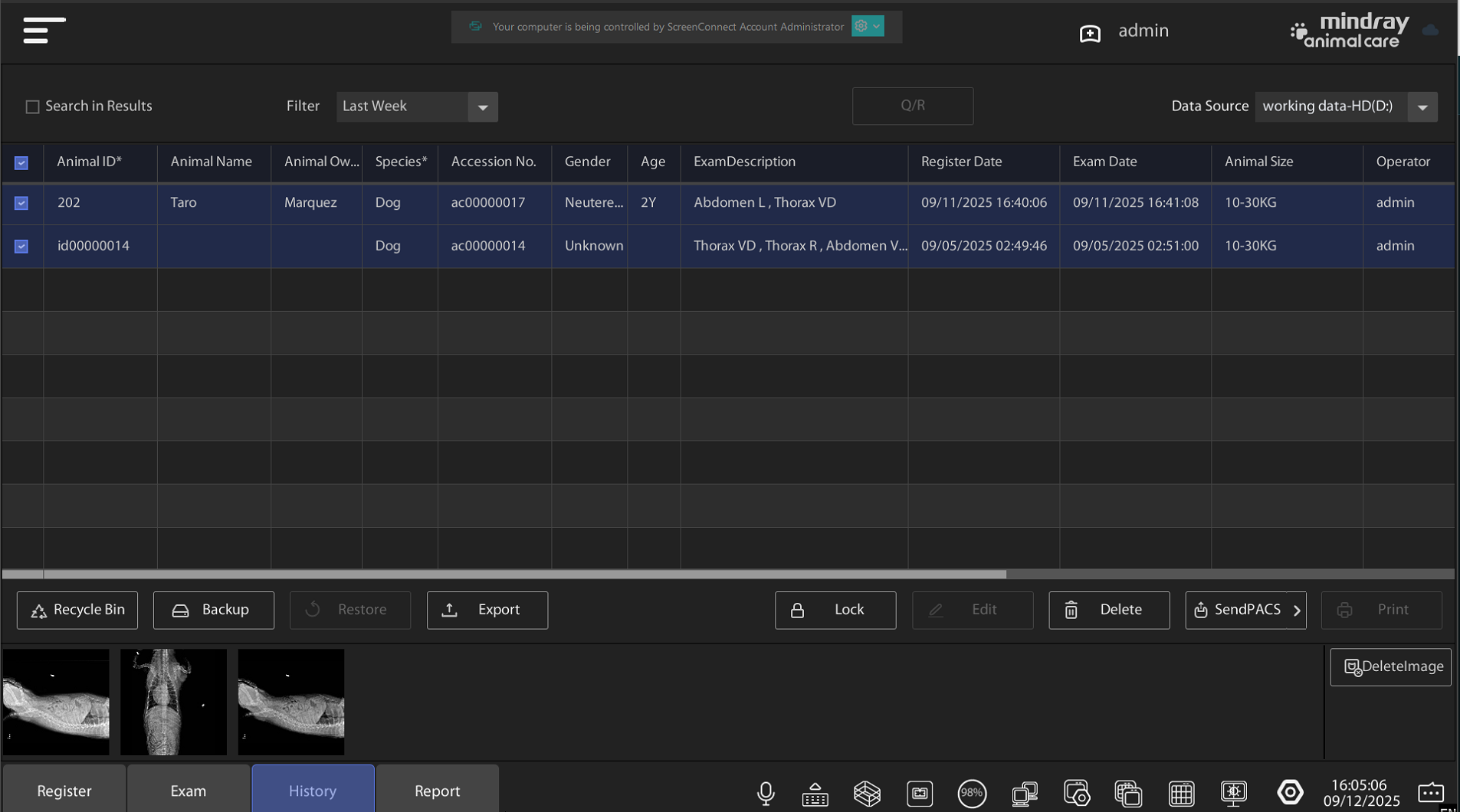

5. Click on history and highlight a study then click SendPACS to send a test study
